Edit the parameters in an SCS Controller using Lab app

When you connect to an SCS Controller installed in a cooler using Lab app, you can view and edit parameters in two key steps.

There are two key steps to update and reload parameters into a connected device:

Step One: Download files from the connected device and then edit them

1. Click EDIT PARAMETERS menu heading to open the parameter editing section.
2. Click the ↓ down arrow to upload parameters from the connected device to the Lab app on your PC.
3. Under SCS VALUE, click the → right arrow to copy the device parameters to the editable list on this page of the Lab app. They should now appear below the arrows in the left-hand column under SCS VALUE.
4. Under EDIT VALUE, make changes to the parameters by entering new data in the right-hand column.
5. Once you have completed changing the values, click the → right arrow under EDIT FILE to save the edits to the file.
6. Under CONFIG FILE, click the → right arrow to upload the parameter file from the local directory on your PC to the server.

Step Two: Download the updated parameters onto the connected device

1. Under SERVER, click the ← left arrow to download the parameter file from the server to the local directory.
2. Under CONFIG FILE, click the ← left arrow to load parameters from the file to the editable list.
3. Under EDIT VALUE, click the ← left arrow to download the parameters onto the connected device.

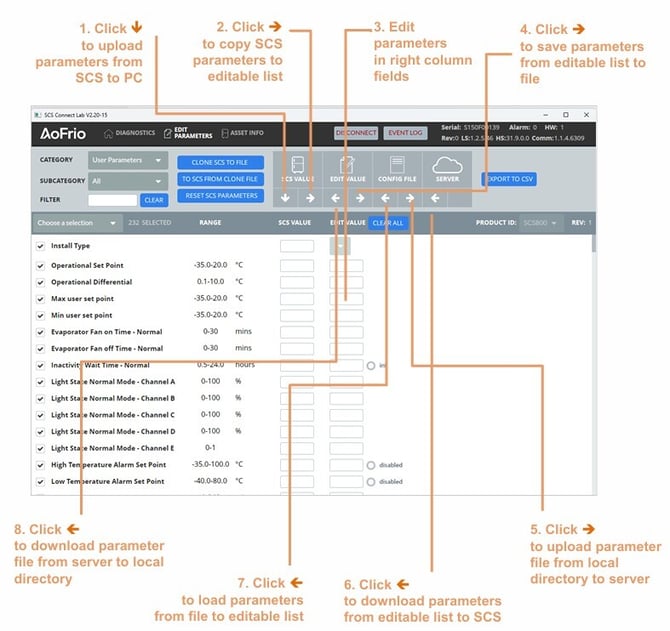

Diagram of whole process
