Install a Network Pro ONE or MULTI in a cooler cabinet

When you are installing a Network Pro ONE or Network Pro MULTI inside a cooler, there are a few things you should consider for optimal performance.

Step 1 - Choose your mounting location

NetWork1.5In most situations we recommend that the Network Pro ONE is mounted inside the cabinet, but not in a place where it is fully enclosed by metal. Mount the device:

  • ✅Behind plastic paneling or a grid as these are less likely to interfere with communications. Avoid mounting the device where it is fully surrounded by metal surfaces.

  • ✅Out of sight from customers to minimize the risk of theft or tampering.

  • ✅At or near the top of the cooler to ensure the best connection strength to a Cellular Network (LTE-M or 2G) for data upload to the Cloud.

  • In a way that avoids debris and moisture ingress from above.

Avoid:

  • ❌External mounting on the side or back of a cooler where the device can be damaged during cooler movement.

  • ❌Cold or warm spaces as this will impact the communications and device battery. The mounting location must be an area where the temperature is maintained between 0°C (32°F) and 40°C (104°F).

  • ❌Areas where there is a high risk of condensation or moisture.

Step 3 - Attach Network Pro device

TIP: It doesn’t matter if the device is horizontal or vertical, but the tail should be facing down or to the left, to avoid ingress through the USB-C port.

Screw mounting

1. Pull out the screw mounting tabs from the bottom of the device.



slide8NEW

2. Mark and drill pilot holes.



3. Using a screwdriver, tighten the two screws to secure the device to the surface.

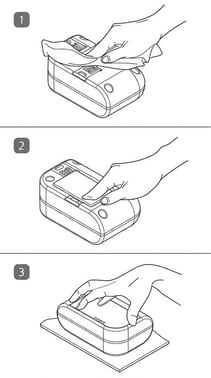

Tape mounting

1. Ensure the mounting surface and the back of the device are clean and dry. slide9NEW


2. Stick the adhesive pad to the back of the device.
3.Firmly press the device into position, ensuring it is secured to the surface

Step 3 - Attach power cable.

  • Terminate the AC cable with an appropriate connector to allow easy integration with the cabinet AC wiring.

  • (Optional) Use cable ties to secure the power cable and device in place in case the cooler is moved.

Step 4 - Pair a Network Pro ONE with an SCS Controller or Monitor

Install Address? The install address for a Network Pro comes from the SCS Controller or Monitor it is paired with. To ensure the correct address appears in AoFrio software, add the install address when commissioning the SCS Controller or Monitor using Field app.
