Remote Display for SCS Controller specifications & datasheet

Key specifications from the datasheet for the four Remote Display variants, an accessory for the SCS Controller.

Here are key specifications for the Remote Display from the Datasheet (PDF).

Model  VIS20   VIS30   VIS60   VIS60-P
Display size  81 x 36 mm   96 x 50 mm   135 x 97 mm   135 x 97 mm
Cutout size  71.5 x 29.5 mm   90 x 44 mm   124 x 85 mm   124 x 85 mm
Digit height  24 mm   34 mm   61.7 mm   61.7 mm
Panel thickness range  0-3 mm   0-3 mm   0-3 mm   0-3 mm
Max current (mA)

White = 120

Green = 150

Blue = 230

  To be confirmed

White = 120

Green = 150

Blue = 230

White = 120

Green = 150

Blue = 230

All models

 Controller compatibility

  • VIS20 compatible with SCS 800

  • VIS30 and VIS60 compatible with SCS 500,600 and 800
 Buttons  Standby, Defrost functions, Mechanical tact switch
 Indicators  Indicators for BLE, Alarm, Fan, Compressor Display range -9.9 to 99
 Fastening method  Options for front and rear installation. There is also a projection option for the VIS60 model.
 Cable  1m / 3m options
 Storage temperature -20°C to 80°C
 Operating temperature -20°C to 55°C
 IP rating  IP55 (front housing only)
 LED colour White / Gren / Blue
Custom branding /icons Available for volume OEM orders on request
 Weight  VIS20 = 30g. Other models to be confirmed.
Approvals

Conformité_Européenne1   FCC1  RCM1

CE, FCC, RCM

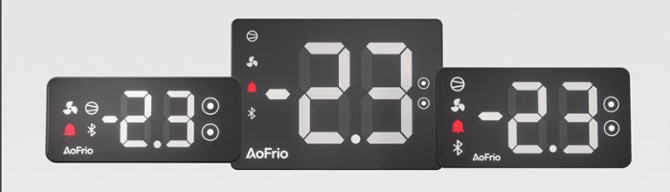

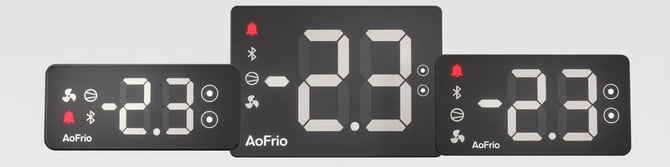

DisplayThreeGreyFrom left to right: VIS20, VIS60, VIS30
